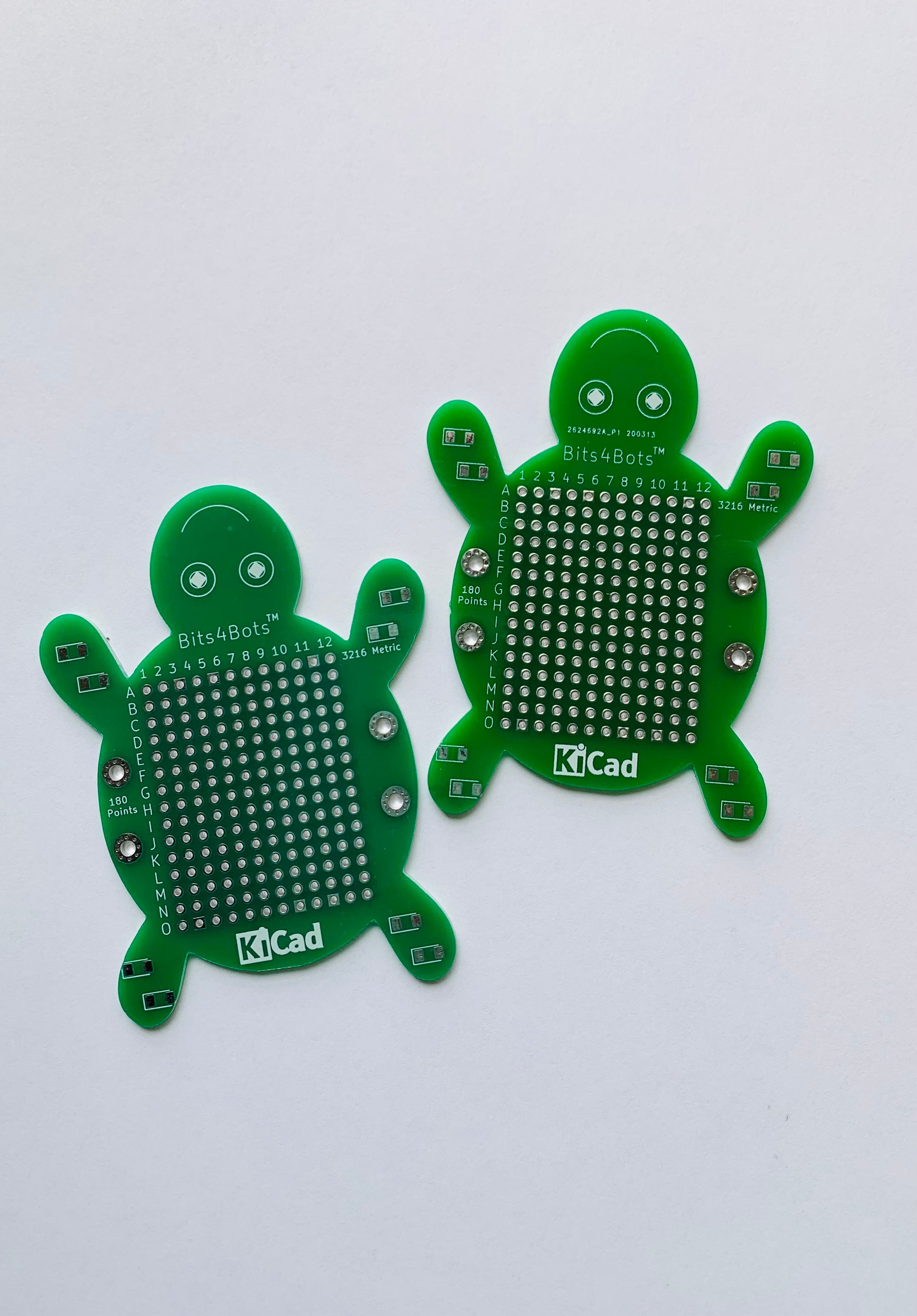

Turtle Solder Board - 2 PCS Solderable

What is it?

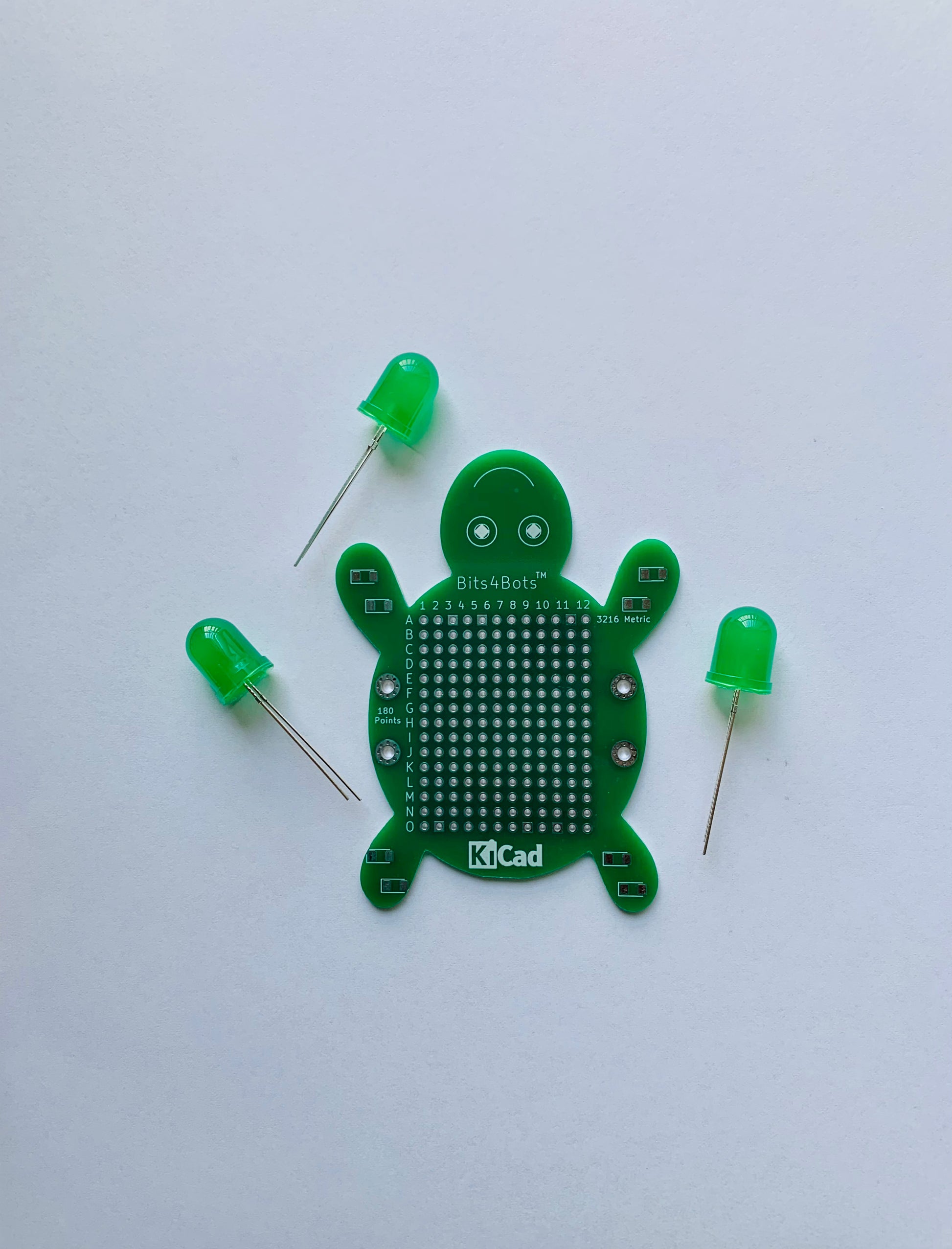

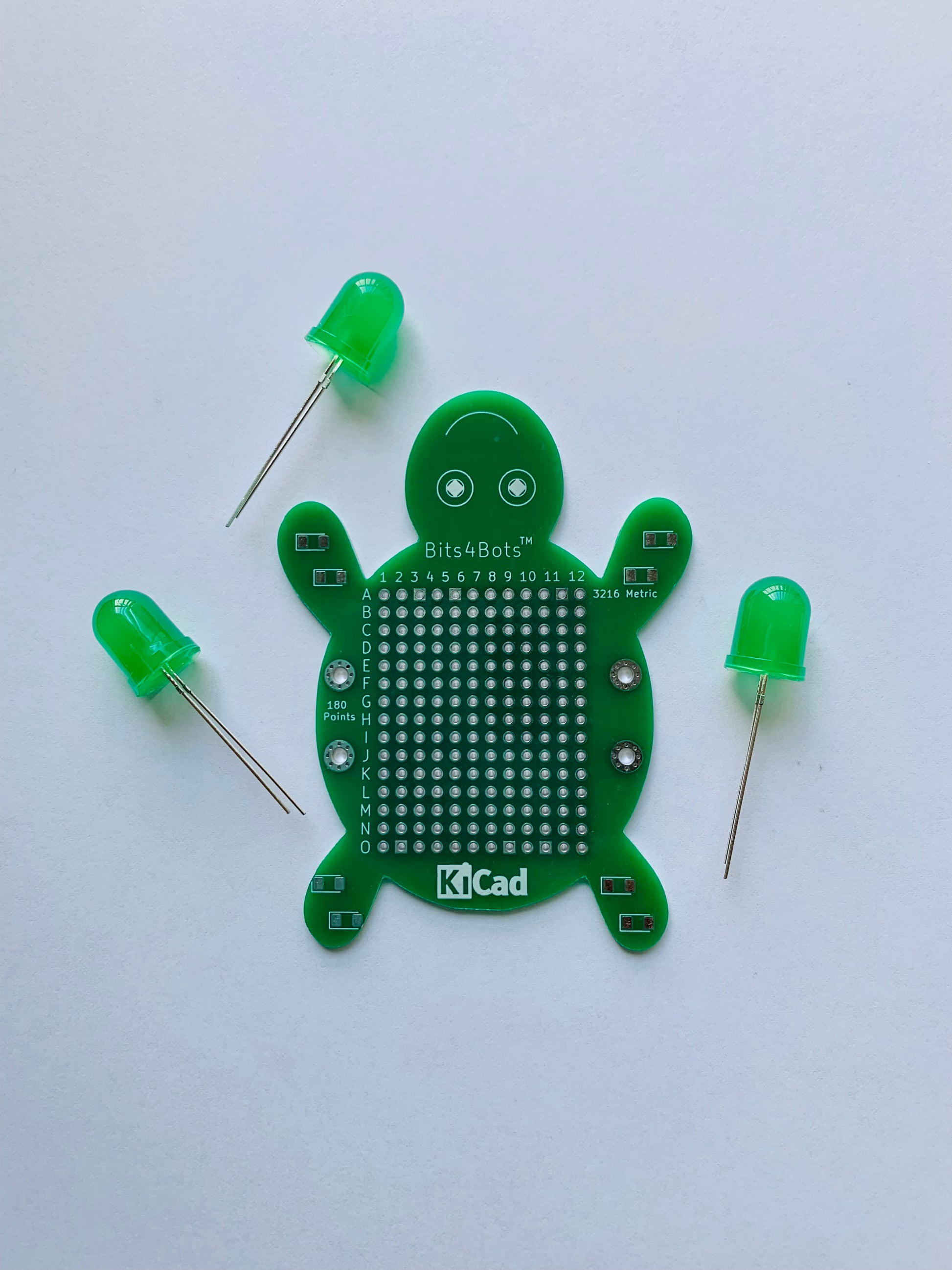

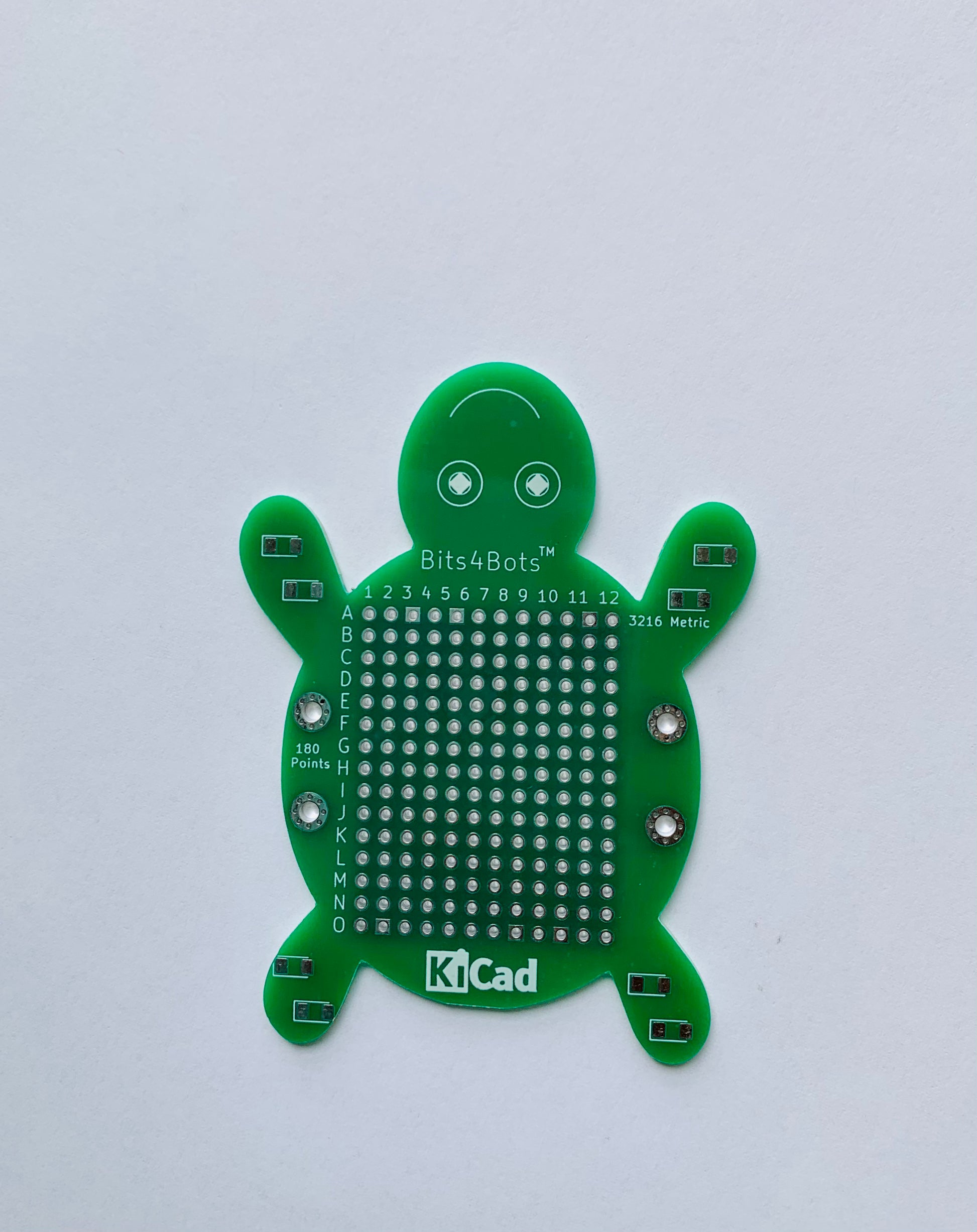

Turtle shaped prototype circuit board. Great for building and testing new projects. Perfboard. Ignite your child's passion for soldering.

Age

• 12+

Features:

• Eight 1206 (3216 metric) surface mount solder practice pads
• Components NOT included.
• Dimensions: 59mm x 70mm
• PCB thickness 1.6mm
• Weight 0.3 oz ea.
• Green color
• Unisex
• 180 tie point. Isolated solder pad around each hole on both sides. Hole size 1mm (standard)

ENVIRONMENTAL

• Material: FR4 Epoxy Glass { MIL - P13949 type Gf } 1.27mm pitch
• Temperature range: -55ºC to +125ºC

Why did you make it?

To engage younger students and makers and to provide tools for electronics and hardware design. Bring something different & creative to market.

What makes it special?

First of its kind. Unique circuit board with personality.

How to use it:

Each pad is isolated so that any combination of discrete components and chips may be inserted and soldered into place. Using point-to-point wiring will result in the most flexibility and highest density construction possible.
